Automated Film Peeler/ Sealer Series_Galatek

Automated Film Peeler/Sealer Series.

With the increasing application of microplates in experiments, sealing compounds or biological samples in microplates has become an increasingly common and critical need in laboratories. The automated film peeler/sealer provides a practical tool for laboratories with its high cost-effectiveness and meets the needs of researchers for efficient and stable sealing operations.

Product Introduction

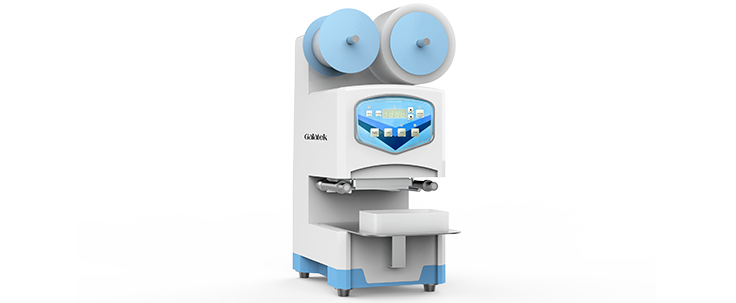

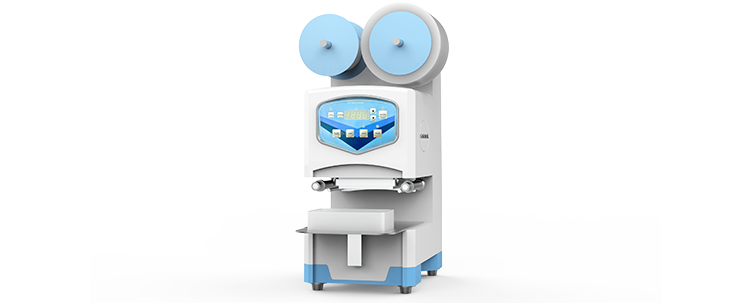

Automated Film Heat Sealer MRA-AFS-200

The automated film heat sealer MRA-AFS-200 is suitable for various SBS standard microwell plates, deep-well plates, PCR plates, improving the production efficiency of film sealing and helping enterprises reduce production costs. This device can be used for automatic sealing of deep-well plates for various IVD reagents, sealing of the PCR diagnostic reagent and other complicated scenarios.

Product Manuals

Product Features

Easy to Operate

Compact design, with a small footprint, equipped with automatic plate holding device for easy plate loading and unloading, user-friendly interface, easy to get started

Intelligent and Efficient

Automatically detects the height of the microplate, enables high sealing effect within 10 seconds by pressure and heating, equipped with automatic equidistant film cutting sensor, supports continuous operation of 24 hours

High Adaptability

Supports automated heat sealing of SBS standard microplates, compatible with roll film and sheet film, easy to dock with robotic arm to enable automated integration

Product Parameter

Product Model		Automated Film Heat Sealer MRA-AFS-200
Dimensions		370mm(W)370mm(D)620mm(H)
Net Weight		26kg
Operation Control		Key operation panel
Operating Environment	Temperature Range	10-40°C
	Relative Humidity	±80%
	Atmospheric Pressure Range	86.0~106.0kPa
Power Supply	Voltage	220V±22V
	Frequency	50Hz±1Hz
	Power	200W
Function Overview		Automated heat sealing of all SBS-standard microplates, PCR plates, or cassette systems, compatible with roll/sheet films
Sealing Efficiency		Sealing Time	10-15s/plate
		Sealing Throughput	>300 plates/hour
		Number of Plates Sealed Simultaneously	1 plate
Plate and Film Replacement Method		Manual

Application Scenarios

Biochemical Reagent Packaging

Crystallization Experiment

Nucleic Acid Extraction Kit Production and Sealing

PCR Plate Sealing

ELISA

Other SBS Well Plate Sealing
